Product Details:
|
Technique:: | Welded Pipe | Surface:: | Galvanized Coated |
---|---|---|---|
Grade:: | Q235, Q235, Q345, ST37 | Application:: | Fluid Pipe, Boiler Pipe, Gas Pipe, OIL PIPE, Structure Pipe |
Sample: | Avaliable | Section Shape: | Round, Square |
High Light: | Q345 GI Steel Material,Q235 GI Steel Material,Welded Pre Galvanized Steel Pipe |

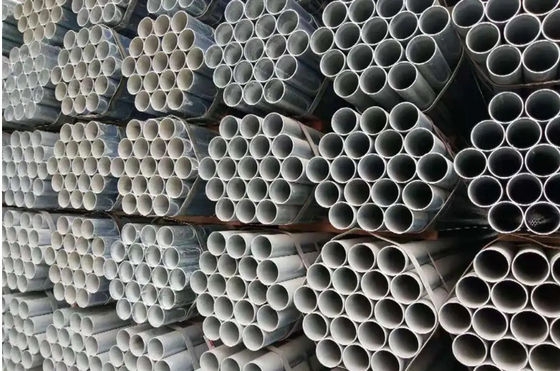

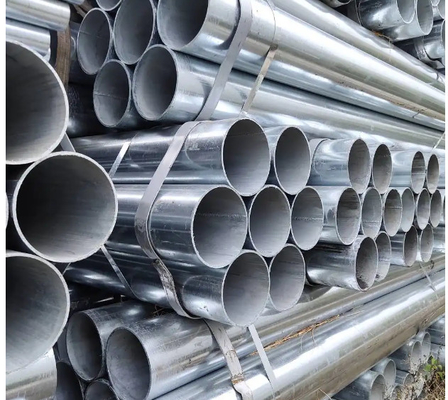

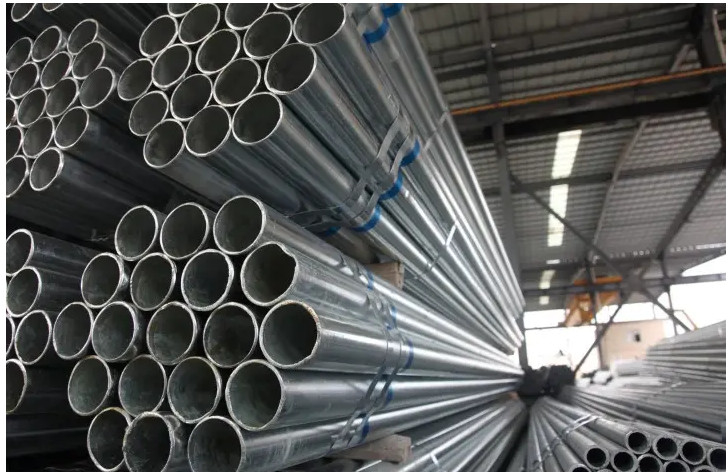

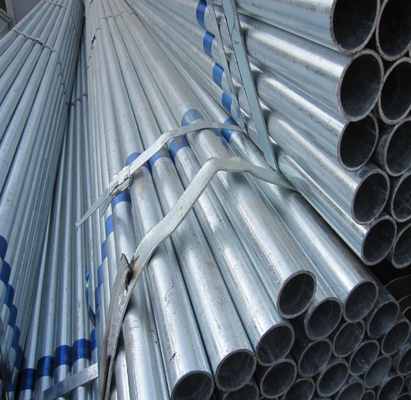

galvanized steel pipe/Hot dipped galvanized round steel pipe/gi pipe pre galvanized steel pipe
Item
|
Hot Dipped Galvanized Round Steel Pipe/GI Pipe/Galvanised Tube
|
OD
|
20~405mm in theory
|
Thickness
|
1.2~15.7mm
|
Length
|
Any Length Below 16 Meter
|
Standard
|
GB,ASTM,BS,EN,JIS
|
Material
|
ASTM, Grade B,Grade C,Grade D,Grade 50
|
Zinc Coating
|
30-275g/m2
|
Application
|
Used For Water, Gas, Stream, Combustible Fluids And Other Liquid Delivery
|
Ends
|
Plain, Beveled, Thread With Couplings Or Sockets;
Plastic Caps And Steel Rings Can Be Provided If Possible |
Surface
|
Bared, Galvanized, Oiled, Color Paint, 3PE; Or Other Anti-corrosive Treatment
|
Technique
|
Hot Rolled Or Cold Rolled ERW
|
Package
|
Covered With Tarpaulin, Containers Or In Bulk
|
Payment Terms
|
TT30% Deposit, balance after BL copy in 21 days, or LC at sight
|
Product Chemical Composition & Mechanical Properties :
Grade | Chemical Composition | Mechanical Properties | ||||||
C | Mn | Si | S | P | Yield | Tensile | Elongati | |
Strength Mpa | Strenth Mpa | -on % | ||||||
Q195 | 0.06-0.12 | 0.25-0.50 | ≤0.30 | ≤0.045 | ≤0.05 | ≥195 | 315-430 | ≥33 |
Q215 | 0.09-0.15 | 0.25-0.55 | ≤0.30 | ≤0.05 | ≤0.045 | ≥215 | 335-450 | ≥27 |
Q235 | 0.12-0.20 | 0.30-0.67 | ≤0.30 | ≤0.045 | ≤0.04 | ≥235 | 375-500 | ≥26 |
Q345 | ≤0.20 | 1.00-1.60 | ≤0.55 | ≤0.04 | ≤0.04 | ≥345 | 470-630 | ≥22 |
![]() |
Advantages of steel plank: 1.durable & stable 2.good bearing capacity 3.low cost, high quality 4.Excellent security function 5.easy to assemble & dismantle 6.long durability, the working life can up to 5-8 years 7.Corrode-resistant, Slip prevention, Anti-fire, Anti-sand, less weight |
Application of Galvanized Steel Pipe: 1.Galvanized Steel Pipe which is convenient for workers to walk on high building. 2.The galvanized surface makes Steel Pipe more stronger in the rainy days and most environment. 3. Various size of Galvanized Steel Pipe could be customed. |
![]() |
3.Product standard test:
Q195 ≈ | Grade B,SS330 SPHC,S185 |
Q215 ≈ | Grade C/CS Type B,SS330 SPHC |
Q235 ≈ | Grade D,SS400,S235 |
Q345 ≈ | Grade 50/345,SPFC590,E/S335 |
All items of our products and related tests as follow :
1. ERW black round pipe (ASTM A53,GB..)
2. Weld black square/rectangular pipe(ASTM A500,GB,...)
3. Hot dip galvanized round pipe (BS 1387,ASTM A53,GB ,...)
4. Hot dip galvanized square/rectangular pipe(ASTM A500,GB...)
5. Pre-galvanized square/rectangular/round pipe,cold rolled black annealed or bright finished pipe.
6. Spiral steel pipe
7. Seamless pipe (ASTM A53,A106B,)
8. Oval pipe in galvanized and black surface
9. LTZ... special sizes pipe
10. Steel prop , steel plank,steel scaffolding pipe and accessories... steel constrctution material
11. Steel angle, Flat bar,round bar,sqaure bar,
12. H,I,U,C,T,Y,W...steel beam/channel
13. Deformed steel bar
14. Hot rolled& cold rolled steel sheet/coil in black,galvanized,color coated surface.
Field of use and application:
The purpose of the square tube is construction, machinery manufacturing, steel construction and other projects, shipbuilding, solar power support, steel structure engineering, electric power engineering, power plant, agricultural and chemical machinery, glass curtain wall, automobile chassis, airport, boiler construction, high-speed road railing, Building construction, pressure vessels, oil storage tanks, bridges, power station equipment, lifting transport machinery and other high-load welded structural parts.Basic building,Greenhouse construction,High speed fence.Photovoltaic stent,Sports Equipment,ect.
Produce Process:
Packing and Delivery:
1). 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
2). 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
3). 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
Customer Visit:
With Concept of "Keep Improving,Win-win Cooperation",and executed by reliable quality and after sales service system,Kunda gained good reputation from customers at home and abroad.We sincerely welcome you come to our company negotiate business and make great achievement together !
Certificate:
All steel products certificated by BV.
