Product Details:
|
Product Name: | Ship Building Structural Steel Plate | Technique: | Hot Rolled |
---|---|---|---|
Length: | 8000-25000mm | Width: | 3000-12000mm |
Thickness: | 3-800mm | MOQ: | 1 Ton |
Packing: | Standard Seaworthy Packing | Payment Terms: | L/C T/T (30% Deposit) |
High Light: | ASTM A36 Ship Steel Plate Sheet,Q195 Ship Steel Plate Sheet,SGCC Steel Plate Sheet Cold Rolled |
Factory Direct Supply hot rolled carbon steel plate A36 AH36 Carbon Steel Plate ship building steel plate
The structural steel for ship hull is divided into strength grades according to its minimum yield point: general
strength structural steel and high strength structural steel. Ship plate refers to the hot-rolled steel plate produced
in accordance with the requirements of the classification society's construction codes for manufacturing the hull
structure. The general strength structural steels of China Classification Society Standards are divided into four
quality grades: A, B, D, and E (that is, CCSA, CCSB, CCSD, CCSE); the high-strength structural steels of China
Classification Society Standards are three Strength level, four quality levels.
Product | Hot rolled steel plate |
Material | SS400,Q195, Q215,Q235, Q235B, Q215B, DX51D, SGCC |
Standard | JIS G3002 GB/T251B |
Thickness | 0.15mm-6mm |
Width | 600mm-1500mm |
Technique | Hot rolled |
Port | Tianjin port or Designated port |
2mm 5mm 6mm 10mm 20mm ASTM A36 Mild Ship Building Hot Rolled Carbon Steel Plate EH36
Cutting large steel plates as your requirements to make the surface of the plate bright by miling and grinding,
also can make holes and make angle degrees,and can weld by your drawing.
For the thickness under 30mm, cutting by laser ;For thickness over 30mm, mainly OXY-cut, flame cutting.
For the thickness 200mm steel plate, because during the flame cutting, the temperature is very high, so the
cutting parts steel plate might be broken at the angle part, then our workers will repair the angles to be good
condition.
The yield strength of A32, D32, E32, and F32 is not less than 315N/mm^2, and the tensile strength is
440-570N/mm^2. A, D, E, and F indicate that they can each be at 0°, -20°, The impact toughness that can
be achieved under the conditions of -40° and -60°;
The yield strength of A36, D36, E36, and F36 is not less than 355N/mm^2, and the tensile strength is
490-620N/mm^2. A, D, E, and F indicate that they can each be at 0°, -20°, The impact toughness that can
be achieved under the conditions of -40° and -60°;
The yield strength of A40, D40, E40 and F40 is not less than 390N/mm^2, and the tensile strength is
510~660N/mm^2. A, D, E and F indicate that they can be at 0°, -20°, respectively. The impact toughness
that can be achieved under the conditions of -40° and -60°.
2mm 5mm 6mm 10mm 20mm ASTM A36 Mild Ship Building Hot Rolled Carbon Steel Plate EH36

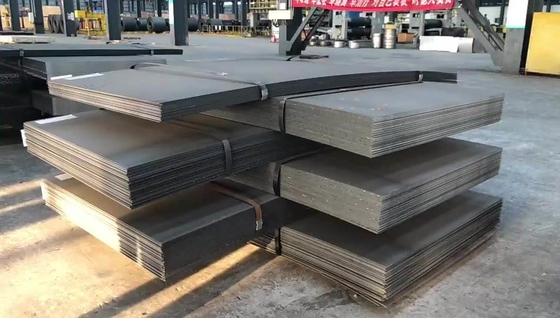

Packaging | when each plate weight is under 1 ton, it will be in bundle with steel strips 2-4, when each plate weight is over 1ton, it will be piece by piece. |
20 feet container contains dimension | Width under 2300mm, length under 6000mm |
40 feet container contains dimension | Width under 2300mm, length under 12000mm |
By bulk vessel |
Freight charge is low by bulk cargo, and large heavy sizes can not be loaded into containers can shipping by bulk cargo
|

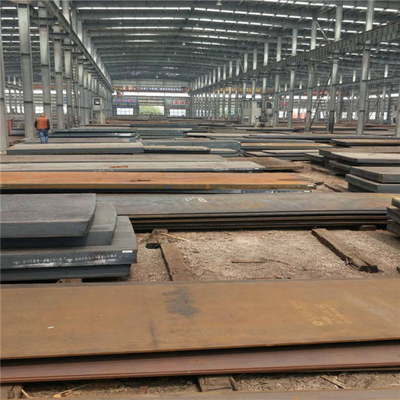

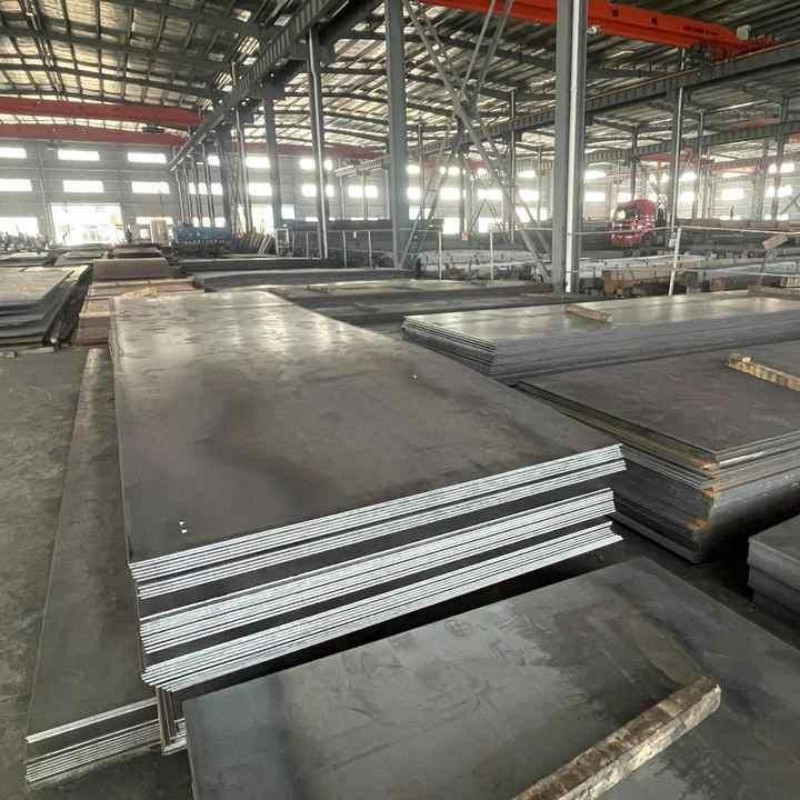

We have own large-scale indoor warehouse with perennial spot stocks totally above 5000 tons mainly
include 2000 tons galvanized steel series and 2500 tons carbon steel series.All the products have to
pass the inspections such as tension test, hardness test, spectrophotometer test, salt spray test and
PH test before leaving the factory .
Our company has established good relations with other domestic steel mills, like wusteel, baosteel, ansteel,
and also have cooperation with foreign steel mill, like Handox, Raex, Jfe. We have our own quality management
systems : ISO9001, ISO14000, OHSAS18001 standards, strictly control purchases, produce, sales, warehouse
and transport processes.
Our Addvantage
Products inspection of Straightness,Flatness, Inherent defects, Dimensions, Welding Quality,
1: Finish/Cleanliness, material analyzing and Mechanical properties testing; MTR.
2: Packing inspection / marking verification.
3: Pre-Shipment Inspection.
4: After-sales services.
Q: Why choose us?
A: Our company have been in steel business for more than ten years, we are internationally experienced,
professional, and we can provide variety of steel products with high quality to our clients
Q: Can provide OEM/ODM service?
A: Yes. Please feel free to contact us for more details discuss.
Q: How is your Payment Term?
A:One is 30% deposit by TT before production and 70% balance against copy of B/L; the other is Irrevocable
L/C 100% at sight.
Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up
your case.
Q: Can you provide sample?
A: Yes, for regular sizes sample is free but buyer need to pay freight cost.
